Quick Thermal Conductivity Meter (¿­ Àüµµµµ ÃøÁ¤±â)



- SampleÀÇ Á¾·ù¿¡ °ü°è¾øÀÌ ÃøÁ¤ÀÌ °¡´ÉÇÏ´Ù.
- 60ÃÊ À̳»¿¡ ÃøÁ¤ °á°ú¸¦ º¼ ¼ö ÀÖ´Ù.
- SampleÀ» Á¤¹ÐÇÏ°Ô °¡°øÇÏÁö ¾Ê¾Æµµ ÃøÁ¤ÀÌ °¡´ÉÇÏ´Ù.
- LCD È­¸é¿¡ ½Â¿Â Curve°¡ GraphicÈ­ µÈ´Ù.
- °£ÆíÇÑ Á¶ÀÛ.
- OptionÀ¸·Î½á Software¿¡ ÀÇÇÑ Data controlÀ» ÇÒ ¼ö ÀÖ´Ù.
- Fibers, Papers, Rubbers, Plastics, Glasses, Ceramicsµî ½Å¼ÒÀçÀÇ ¿¬±¸, °³¹ß, ±¸Á¶ÀÇ ÃøÁ¤¿¡ ÀÌ¿ë.





Model

QTM-500

Measuring method

Hot wire method

Measuring Range

0.023 ~ 12W/mk

Precision

±5%

Reproducibility

±3%

Temp. range

-10 ~200¡É

Measuring Time

Standard 60sec

Sensor

Box probe, PD-11

Heater current precision

±0.05% of setup value

Display

30 Characters 7 Line LCD Graphic

Min. Sample size

100W x 50L x 20t mm, or more

Output signal

RS232C 1 Channel

Ambient condition

5 ~ 35¡É, 85%RH below

Power source

100/240V,  50/60Hz

Power consumption

60W

Dimension

Main : 300W x 475D x 175H mm

Box probe : 100W x 50D x 100H mm

Weight

9kg

Standard supply

1. Box probe (PD-11)              x 1EA
2. Probe constant card            x 1EA
3. Power cord & ground wire   x 1EA
4. Power fuse                        x 1EA
5. Reference plate
    R1-2 Clear quartz in box     x 1EA
    R2-2 Silicone rubber in box  x1EA
    R3-2 Polyethylene form in box x 1EA
6. Cooling plate(Aluminium)        x 1EA
7. Brush                               x 1EA
8. Operating manual            1copy

Quick Thermal Conductivity Meter
Model QTM-500

[ QTM-500¿ë Software ]



> Probe Ư¡

Model

PD-11

PD-N0

PD-13

QTM-PA11

PD-31

Type

Box

Needle

Hot wire

Box

Hot wire

ÃøÁ¤¹üÀ§(W/m.k)

0.023~12

0.0116~0.1163

0.023~12

0.023~12

0.058~5.815

ÃøÁ¤Á¤µµ

±5£¥ À̳»

±5£¥ À̳»

±5£¥ À̳»

±5£¥ À̳»

±5£¥ À̳»

ÃøÁ¤¿Âµµ(¡É)

-100~200

-100~180

-10~200

-10~200

-100~1000

ÃøÁ¤½Ã°£(ÃÊ)

60

40

60

60

100~120

Àû ¿ë

´Ü¿­Àç, º¸¿ÂÀçµî °íüÀÇ ¿­ÀüµµÀ²
ÃøÁ¤

´Ü¿­Àç, º¸¿ÂÀç, ºÐü, ½ÄÇ°µîÀÇ ¿­ÀüµµÀ² ÃøÁ¤.

½ÄÇ°,»ýÄÜÅ©¸®Æ®µîÀÇÇÔ¼öÀ² ¹× Àüµµ¼ºÀç·áÀÇ ¿­ÀüµµÀ² ÃøÁ¤

ºÐüÀü¿ëÀ¸·Î ¿­ÀüµµÀ²ÃøÁ¤

³»È­Àç,´Ü¿­Àç¿¡ ƯÈ÷ °í¿Â,  Àú¿ÂÀÇÃøÁ¤Ä¡°¡ ¿ä±¸µÉ¶§ ÀÌ¿ë

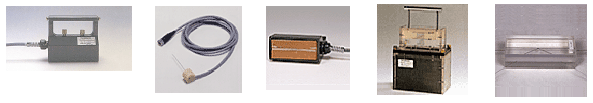

Standard Probe
PD-11

Needle Probe
PD-NO

Àý¿¬,¹æ½À¿ë
Probe PD-13

ºÐü¿ë Probe
 QTM-PA11

Hot wire PD-31
