- Samples weights are automatically
downloaded in the software avoiding
transcription and calculation

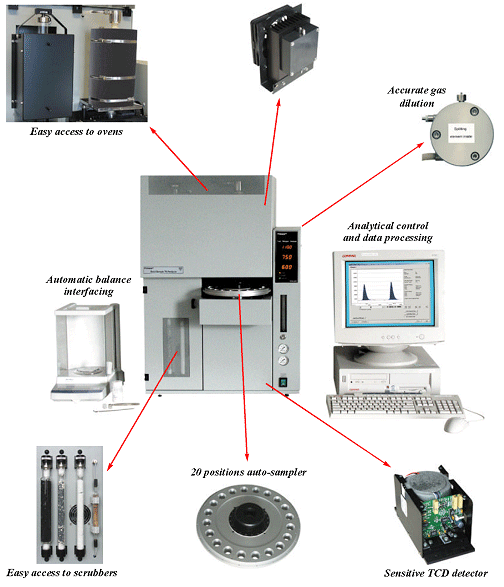

errors. - Samples are combusted
in pure oxygen at 1100 ºC,
the produced gas flow passes the highly
efficient trouble free Peltier
cooler removing all moisture. -
After accurate dilution, the gas
flow is collected in the collection
vessel, and nitrogen oxides
are reduced to nitrogen. - The
flow passes a scrubber, the nitrogen
is measured with the sensitive and
stable thermal conductivity

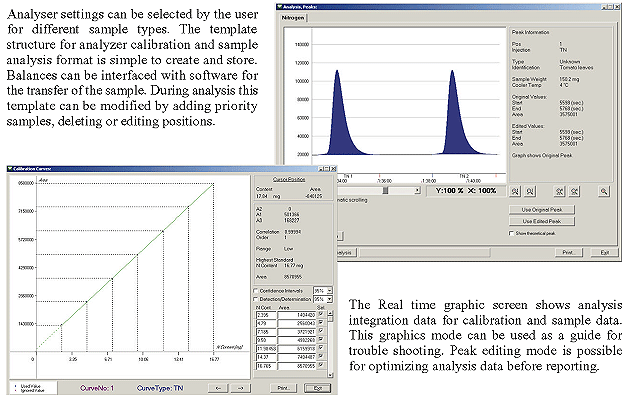

detector. - Skalar's custom
software package controls the analyzer,
calculates the data, produces Q.C.
reports and is easily interfaced
with any LIMS system.
|
