Spray Dryer

: Laboratory Spray Dryer, Basic Laboratory Spray dryer


- ÀÔ, ÃⱸÀÇ ¿Âµµ, Air flow, Auto de-blocker frequency, Pumping speedµîÀ» LCD Digital ·Î Ç¥½Ã.

- Jet ³ëÁñÀÌ ¸·Èú °æ¿ì ÀÚµ¿À¸·Î ¶Õ¾î ÁÖ´Â auto jet de-blocking system ÀåÄ¡°¡ ºÎÂø.

- °ÇÁ¶ È¿À²ÀÌ ³ô´Ù(AIR Blow System).

- ¼Û¾× Pump Speed  Á¶Àý °¡´É.

- RS232C Åë½ÅÀ» Ç¥ÁØÀ¸·Î ÀåºñÇÏ¿©, OptionÀ¸·Î Software¿¡ ÀÇÇØ PC, Dataloggerµî¿¡ ¿¬°áÇÏ¿©, Control ¹×
   MonitoringÀÌ °¡´É.

- °ø±âÁßÀÇ ºÒ¼ø¹°À» 99.99% Á¦°ÅÇÒ ¼ö ÀÖ´Â Filter ³»Àå.

- ¼ÒÀ½°ú Áøµ¿ÀÌ ÀûÀº Oilless air compressor°¡ ³»ÀåµÇ¾î Á¼Àº Àå¼Ò¿¡µµ ¼³Ä¡ °¡´É.

- Spray °ÇÁ¶ÀÇ ÀåÁ¡Àº ºü¸£°í, ÀÏÁ¤ÇÑ ¸ð¾çÀÇ ºÐ¸», ¿À¿°ÀÌ Àû°í, ½À±â ¶Ç´Â ´ë±âÁß¿¡ ³ëÃâµÇ¾î¼­´Â ¾ÈµÇ´Â Á¦Ç°À̳ª

   Áõ¹ß, »êÈ­ÀÇ À§ÇèÀÌ ÀÖ´Â Á¦Ç°ÀÇ °øÁ¤ ¿­¿¡ ¹Î°¨ÇÑ È¿¼Ò¿Í Ç×»ý¹°Áúµµ ±× ±â´ÉÀ» °è¼Ó À¯Áö ÇÕ´Ï´Ù.

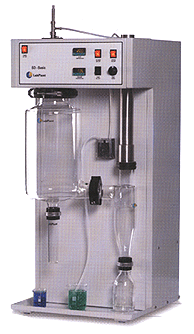

Model [SD-Basic Laboratory Scale Spray Dryer]

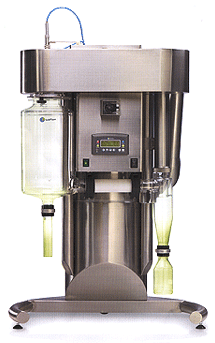

Model [SD-06 Laboratory Scale Spray Dryer]


MODEL

SD-06

SD-Basic

Evaporation rate of water

1500ml/hr

1200ml/hr

Display

All LCD Display

LED Display(Inlet, Outlet ¿Âµµ)

Air inlet Temp. range

40¡É to 250¡É

40¡É to 200¡É

Drying Air throughput

100 to 300 §©/hr

fixed 70 §©/hr

Heater capacity

3 kw

3 kw

Compressor

Built-in 2.0§©/hr at 2.0bar

Option

Sample feed range

2000§¢/hr

1500§¢/hr

jet de-blocking system

Automatic  Built-in

Manual ÀÛµ¿

Spray System

2 liquid nozzle

2 liquid nozzle

Spray/Hot air flow

Downward co-current

Downward co-current

Power supply

220/240V, 50/60Hz, 13A

220/240V, 50/60Hz, 13A

Dimension(H x W x D)

1110 x 825 x 600

1100 x 500 x 500

Weight (kg)

80 kg

60 kg

Complete Supply

All parts necessary for spray drying including blower, heater, microprocessor control with

RS485 interface,

exhaust temperature indicator, spray system with 0.5mm jet, spray atomizer compressor, auto jet de-blocking system with all glassware, tubing,

seals & clamps

blower, heater,

Inlet temperature controller, exhaust temperature indicator, spray system with 0.5mm jet,

manual jet de-blocking system,

all glassware, -tubing,

seals & clamps



Option : Compressor

        (Min. 50L/min at 8 bar)


Accessories

Standard and Large Main Chamber.

Exwhaust Wet Scrubber.

Stainless Steel Jet Assembly with Needles



MainSample Collection Bottle, Collection Tube, SVL Connectors with PTFE Seals and Counter Current Adaptor.

Cyclone and Chimney Extension (for use with large main chamber)
